LM2596T-3.3/NOPB
Manufacturer:
Texas Instruments
Mfr.Part #:
LM2596T-3.3/NOPB
Datasheet:
Description:

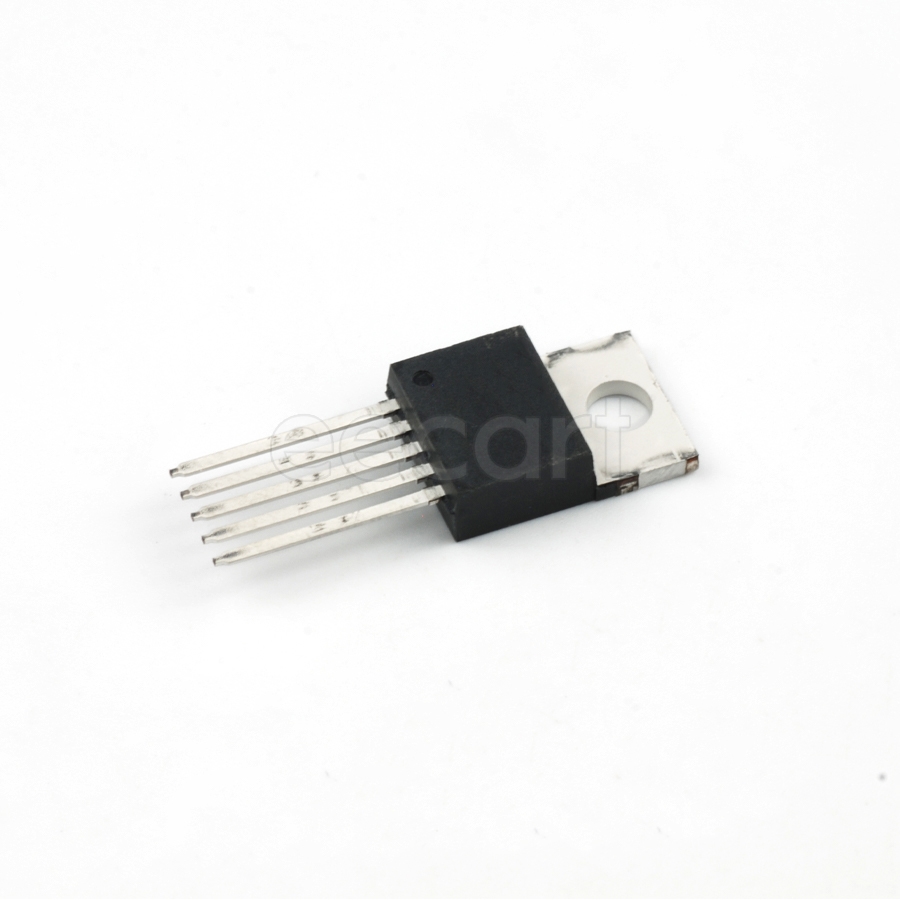

Voltage Regulators - Switching TO-220-5 Through Hole Buck Fixed 3.3 V
| Parameter | Value |
|---|---|
| Length | 14.986 mm |
| Width | 10.16 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Height | 4.7 mm |
| Thickness | 4.6 mm |
| Radiation Hardening | No |
| Min Input Voltage | 4.5 V |
| Output Current | 3 A |
| Output Voltage | 3.3 V |
| Operating Supply Voltage | 40 V |
| Output Type | Fixed |
| Lifecycle Status | Active |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 3 A |
| Number of Channels | 1 |
| Quiescent Current | 5 mA |
| Synchronous Rectifier | No |
| Switching Frequency | 173 kHz |
| Max Input Voltage | 40 V |
| Number of Outputs | 1 |
| Efficiency | 73 % |
| Topology | Buck |
| Function | Step-Down |
| RoHS | Compliant |
| Packaging | Tube |
Stock: 19
Distributors
pcbx
pcbxUnit Price$3.25643
Ext.Price$3.25643
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.25643 | $3.25643 |
| 10 | $2.48699 | $24.86990 |
| 25 | $2.19717 | $54.92925 |
| 50 | $2.11220 | $105.61000 |
| 100 | $2.03051 | $203.05100 |
| 300 | $1.95198 | $585.59400 |
| 500 | $1.87649 | $938.24500 |
| 1000 | $1.80390 | $1803.90000 |
